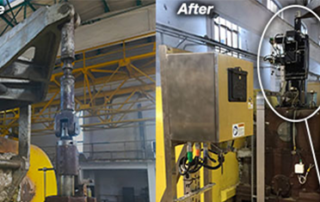

Success Story: Hydroelectric Power Reaction Turbine Hydroelectric power is a reliable renewable energy source, accounting for about 17% of the world’s energy. With countries around the world actively expanding capacity or looking to do so in the near future, hydroelectric power will continue to play a key role in the rise of renewable energy production. Hydroelectric power plants utilize two main types of turbines: impulse and reaction. REXA recently retrofitted Electraulic™ Actuators on two DN600 bypass valves used on a Kaplan-type reaction turbine for a hydroelectric power plant in Poland! Reaction turbines are generally used for plants with lower head and higher flows. They utilize the hydrokinetic energy of moving water to create electricity. Water (usually isolated from ambient pressure inside a penstock) moves through the turbine, increasing in pressure as it reaches, allowing the flow of water to rotate the turbine runner. Bypass valves play an important role, allowing continuous operation incase equipment damage or failure occurs. Unstable performance of these valves creates both inefficient and potentially dangerous operating conditions. Before the REXA retrofit, this hydroelectric power plant was unable to operate above 40% of its’ rated output. The previously installed double-acting pneumatic actuators were unable to deliver the stable control necessary for startup and to operate near the plant’s limit. Air compressibility and static friction led to overshooting and a continuous hunting for target setpoint. The pneumatic performance limits ultimately forced the plant to reduce output in favor ofsafe and stable operation. Specific requirements for this application included the ability for actuators to be adapted to the existing eccentric-type metal butterfly valves, to close normally, and be equipped with a fail-open feature, all while adhering to a limited space with only small changes allowed. Slow and steady actuation is imperative to control water flow andprevent potential water hammer. With this in mind, the plant required actuators to close in approximately 40-60 sec 1-speed (with time adjusted onsite) and open in approximately 2-6 sec 2-speed (slow phase #1, followed by fast phase #2 with time and length of each phase adjusted onsite). Finally, the supplied voltage requirements would be 24VDC or 1ph230VC After meeting with plant personnel, REXA developed a customer-specific solution addressing their pain points. According to the above requirements, the right solution included two rotary actuators with an extensive range of on-site fine-turning features and a smart use of the break surge point option (unique to REXA). After final tuning,this retrofit allowed the plant to finally (and safely) reach 100% capacity. Furthermore, using REXA Electrualic™ Actuators saved the plant costly mechanic /construction changes and shortened total project time. Literature Download the full Success Story here!  Download
